Door Sheet Automatic Mobile Type Welding Machine

門板自動移動式焊機

產品概述

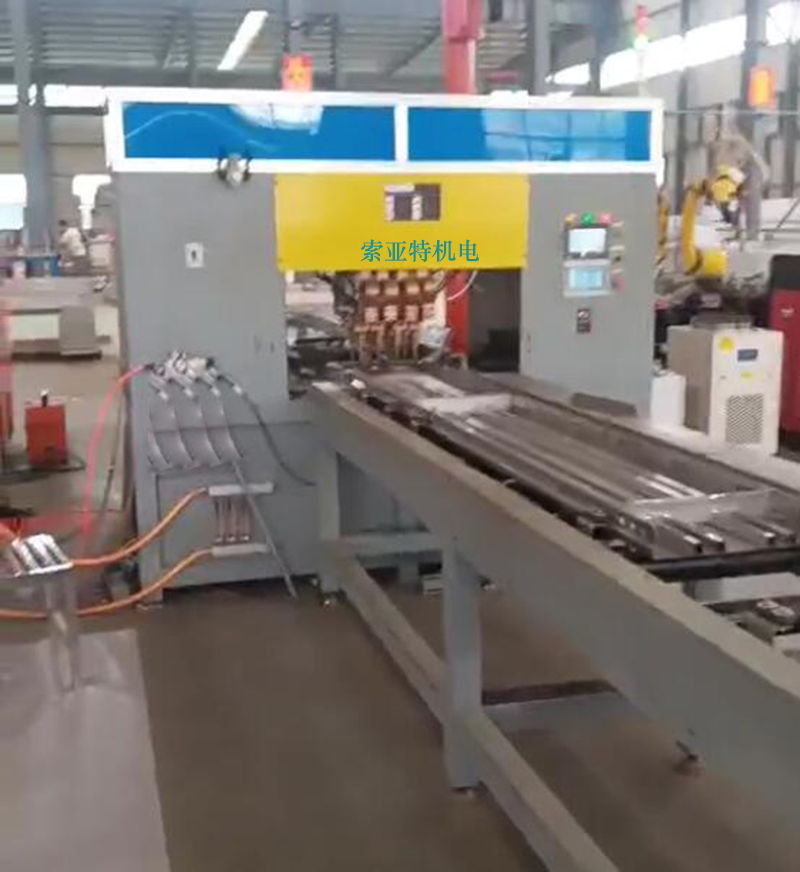

該設備能實現工件的一次裝夾，按照設定的位置自動移動、自動焊接，電極在設定的焊點數后可以自動進入電極修磨系統修整電極，能夠更好的保證焊點的穩定，提高產品質量和生產效率，降低生產成本，解決了手工作業的質量不穩定和生產效率低等缺陷，生產效率和自動化程度有所提高。設備能夠滿足最大尺寸2000X1000mm產品的焊接。

Description

This machine can complete loading and fixing the work piece at one time;lt can automatically move and weld as per preset location;Electrodes can automatically enter into grinding system to repair and maintain the electrodes;lt can be better to guarantee stable welding points,improve products quality and production efficiency and reduce production cost.lt solves the instable quality and low production efficiency defect of manual job;The maximum flat table size is 2000x1000mm.

性能特點

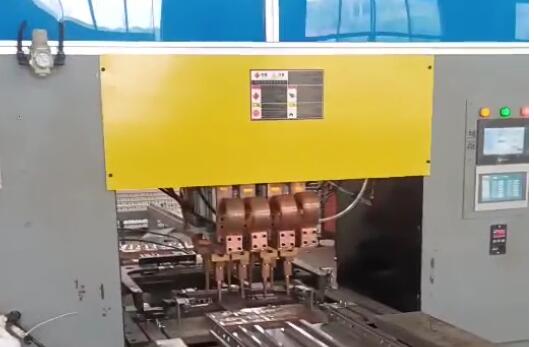

1. 采用加強化特別設計鋼構，C型框架式結構。受力重心合理確保機身在高速運行時機身強度足夠、穩定。

2. 設計大平面工作平臺，獨立工作，延Y方向移動，平臺附有定位裝置，對鈑金件可以比較好的固定，能夠保證焊接點位置的準確性和裝拆的方便。

3. 采用進口觸摸屏作為人機介面，全中文輸入直觀、明了，可存儲30種焊接工件的位置程序可以多達5000個點。

4. 設計選用成型電極修整裝置，修磨機安裝在固定位置，修整高度采用伺服電機上下移動結構，光纖系統檢測電極高度，通過編程的方式可在設定焊接點數的范圍進入修整，可控制電極修整的錐度及高度，高度誤差控制在±0.1mm.

Features

1. Adopt the reinforced special design steel C type frame structure body.lt adopts reasonable stress center of gravity to ensure the stable intensity of the main body when conducting fast speed welding.At the meantime,it could provide stress supporting point and working platform for other actions.

2. Lt is designed with a large flat table as the working table.According to the requirement of product,the independent fixture is equipped which will move in Y direction.Each welding spot position will be fixed with fixture so as to ensure the precision of welding spot and it is easy to assemble and disassemble.

3. Adopt the touch screen from imported famous brand as the human-machine interface,English input.lt can store30 sets of different model for welding with more than 5000welding spots.

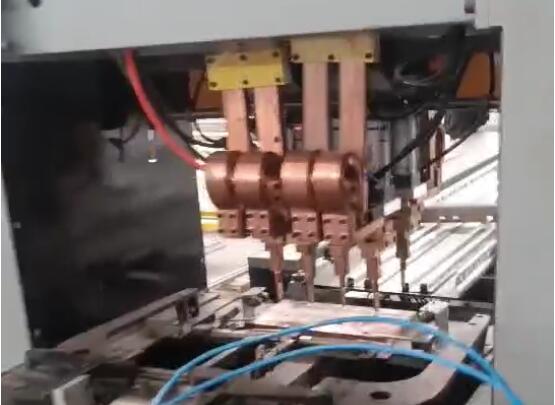

4. Design with electrode grinding device.The grinder is installed at the fixed position.The grinding height will be adjusted via servo motor.Use optical fiber system to detect the height of electrode.lt will enter into grinding process according to the setting program after doing welding for certain number of times.The grinding taper and height are both adjustable.The height tolerance is within±0.1mm.

適用范圍

主要用于焊接一般固定式焊機不能或不便焊接的低碳鋼、低合金鋼、不銹鋼、鍍層鋼、板材及圓鋼。廣泛用于汽車、民用鈑金、防盜門、箱柜、家用電器等行業。

Application

This machine is mainly applied to welding the low carbon steel,low steel alloy,stainless steel,galvanized steel,sheet metal and round steel which are not easy welding with general welding machine.Widely applied to industries in automobile,sheet metal,security door,cabinet,household appliances,etc.

技術參數Technical Parameters
